Senzeal latching switch with LED

Senzeal latching switch with LED

Product Instructions copied from included sheet

LED ON all the time

1. Solder NO and - and power -
2. Connect load + to power + to +
3. Link load - to C
4. Leave NC empty

LED OFF all the time

1. Solder NO and - and power +
2. Connect power - to +
3. Link power + to C
4. Leave NC empty

Maximum voltage 12V DC/AC (I use 5v DC)

Socket wire colours

The socket plugs into the back of the switch and is already wired.

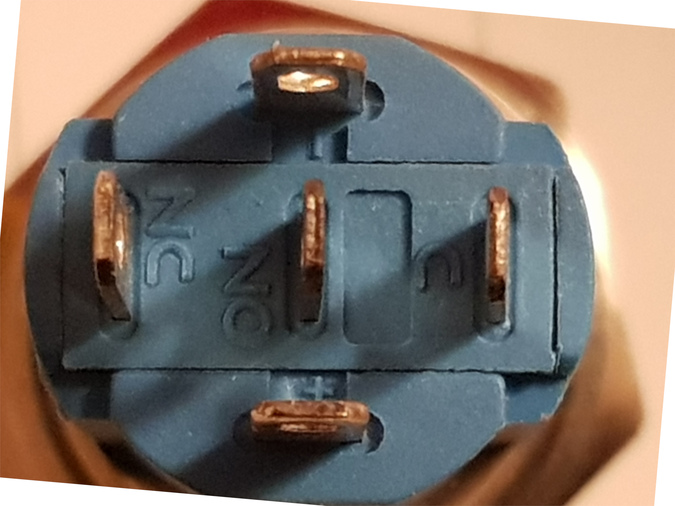

Switch Base

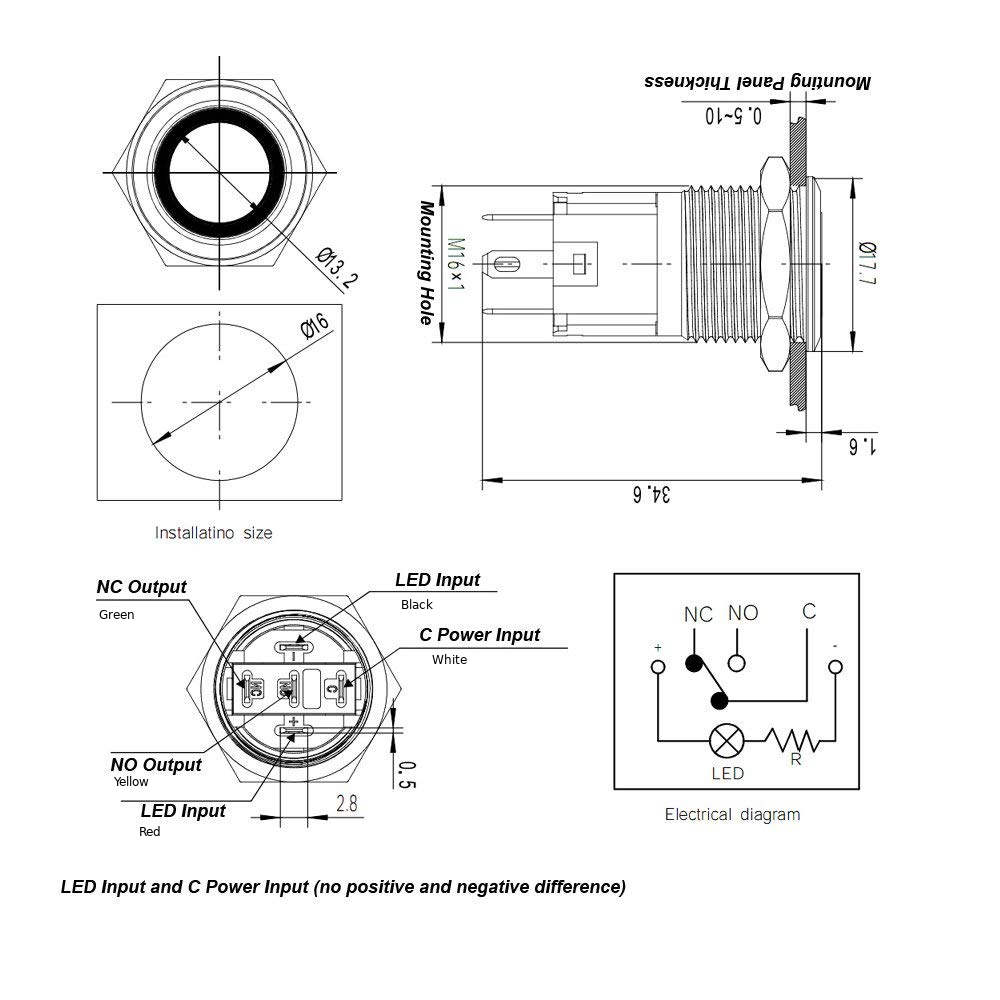

Switch Diagram
